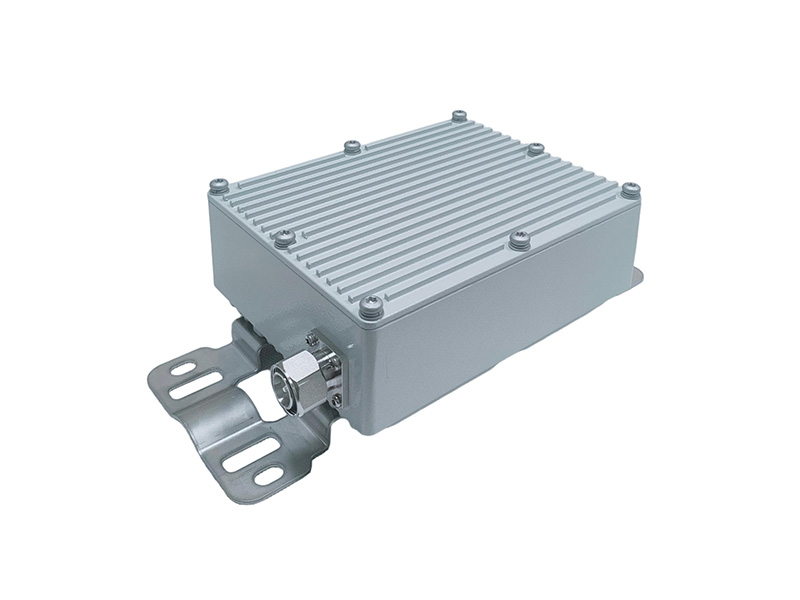

المواصفات:
الجزء لا. | 9508500752 |
نطاق التردد | 600-6000 ميغاهرتز |
فقدان الإدراج | ≤0.5ديسيبل |
VSWR | 1.25 (الطبعة.) 1.3 (الحد الأقصى). |
التعديل البيني | ≤-164dBc@2* 43dBm. |
العراقيل | 50 أوم |
طاقة الدخل | 200(بالإنجليزية: W/avg.) |
درجة حرارة التشغيل | -20درجة مئويةإلى +65درجة مئوية |
درجة حرارة التخزين | -40 درجة مئوية إلى +85 درجة مئوية |
التطبيق | داخلي أو خارجي |
الوزن | ثلاثي البيوتادايين |
اللون | رمادي |
الأبعاد | 174*140*70 مم |
موصلات التردد اللاسلكي | 4.3-10الأنثى |
رسم مخطط تفصيلي:
نحن نفخر بخدمة عملائنا ونهدف إلى توفير دعم 5 نجوم. إذا كان لديك أي أسئلة حول منتجاتنا، لا تتردد في الاتصال بنا أو مراسلتنا.
اتصل 24 ساعة/7 أيام
+86 198-2655-1792Termination Load, also known as a termination resistor or dummy load, is a passive device used to absorb RF energy and terminate RF circuits effectively. It simulates the presence of an antenna or other RF devices to prevent signal reflections and ensure proper impedance matching in RF circuits. Applications: Termination loads are used in various RF applications, including: 1:Testing and Measurement: Used in RF test setups and measurement instruments to terminate unused ports or simulate antenna loads during testing. 2:Transmitter Protection: Employed at the output ports of RF transmitters to absorb excess RF energy and protect the transmitter from damage due to mismatches or reflected power. Advantages of Our Product: 1:High Power Handling: Our termination loads feature high power handling capabilities, allowing them to absorb large RF power levels without degradation or failure.
عرض المزيد
Termination Load, also known as a termination resistor or dummy load, is a passive device used to absorb RF energy and terminate RF circuits effectively. It simulates the presence of an antenna or other RF devices to prevent signal reflections and ensure proper impedance matching in RF circuits. Applications: Termination loads are used in various RF applications, including: 1:Testing and Measurement: Used in RF test setups and measurement instruments to terminate unused ports or simulate antenna loads during testing. 2:Transmitter Protection: Employed at the output ports of RF transmitters to absorb excess RF energy and protect the transmitter from damage due to mismatches or reflected power. Advantages of Our Product: 1:High Power Handling: Our termination loads feature high power handling capabilities, allowing them to absorb large RF power levels without degradation or failure.
